Basic model with single stroke setting:

• Stroke referenced from bed. Repeatability ± 0.03 mm)
• Ram travel parallelism without use of servo-hydraulics
• Convenient bend angle setting, 3-speed stroke cycle
• Adjustable tonnage, stroke length, speed change point
• Front supports with stops-scale, set of back-stops

With extra facility to set Lepto 4 stroke depths:

• Multi-bend jobs easy with help of multiple front stops
• Reduces stroke set-up time for multiple bend jobs
• Stroke settings for different thicknesses, tools
• Improves productivity without costlier NC options

NC stroke, NC Back Gauge (Y & X axis) with LCD control

• LCD control, menus, stores popular jobs-tools
• Faster set-ups, part re-runs extremely fast
• Bends complex obs quickly with minimal handling
• Accurate bends. Fewer inspections, rejections
• Better productivity permits less machines-operators
• Economical against costly multi-axis CNC brakes

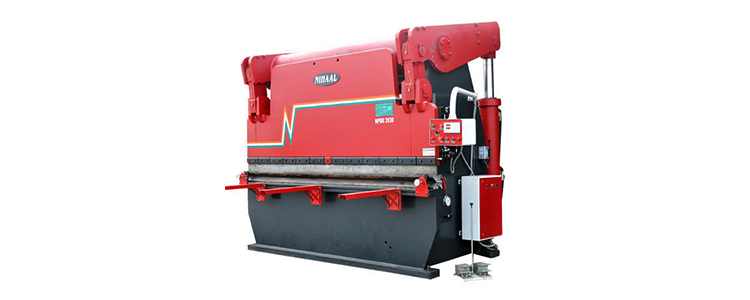

Rear Cylinders Drive and its benefits:

• Two cylinders mounted on the rear drive the ram through levers
• Torsion tube connects the levers to ensure parallel motion of ram
• Levers multiply force. Simple cylinders lower 160 bar working pressure
• Smaller height-depth, hydraulic drive allows installing in tight places, upper floors

Stroke setting needs to be adjusted often for:

• Different bend angles
• Different sheet thicknesses
• Different punches, dies, Vees
• For change in strength, spring-back of sheet even in same sheet, even for similar bends

Standard features-accessories for basic model :

• Ram travel repeatable within x 0.03 mm for consistent bends for interchangeable output
• Ram travel is referenced from bed of avoid side frame deflections affecting stroke accuracy
• Rugged structure from ultra tested IS 2062 grade 13 plates, rigidity conforming to international standards
• Hydraulics. electrics of internationally reputed brands for consistent performance and reliable operation
• Facility to adjust tonnage for thin or segmented footings or when bending special materials
• Back-gauge with set of slide-and-lock stops with micro setting. adjustable vertically and parallel to bed
• Front sheet supports with T-slots. in-laid scale and stops to gauge the sheet from front with clear view
• Most hydraulic parts rated for 310 bar but working pressure only 160 bar for long life. reliable operation
• Ram guides of 5-piece design with replaceable liners
• Pivots with permanently lubricated bearing or hardened parts lubricated by central hand pump
